We Offer Diode Lasers with 15 watts/1470nm + 635nm wavelength for Proctology, Varicose vein (EVLT), Cosmetic Gynecology, Liposuction & PLDD
We are here to help.

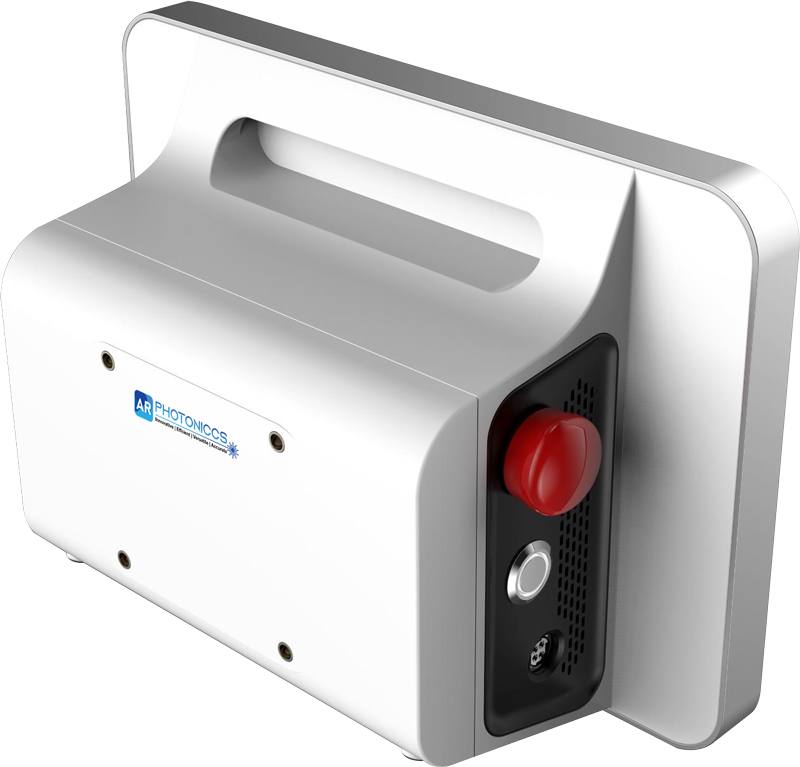

| Model Name | Pulse - ART |
| Laser Mode | Diode Laser |
| Laser Type | Diode, Semiconductor |
| Wavelength | 980nm + 1470nm + 635nm |
| Max Power | 30.5 watts |
| Aiming Beam | 635nm, < 5mw |
| Operation Mode | Continuous or Modulated |
| Pulsed Time | 0.05ms - 1000ms |
| Beam Delivery | SMA905 connector |
| Optic Fiber Compatible | Optic fibers having a core from 200um to 1000um, NA=0.22~0.48 |
| Beam Emission Initiation | Footswitch |
| Controller | Microprocessor |
| Display | 10.1” IPS with touch panel Medical approved |
| Cooling | Internal, air and thermoelectric cooling |
| Power supply of the laser | DC 24V/10A from the separate AC |
| Power supply of AC adapter | Single phase 100~240VA; 50-60HZ, Max 90w |
| AC Adapter | DC 24V/10A Medical approved |
| Laser Dimensions | 27cm * 24.5cm x 9cm |
| Laser Weight | 2.75kg |
| Laser Case Dimensions | 53cm × 38cm × 23cm |
| Weight of Laser with Case | 12kg |
| Environmental Conditions During Work | From +10 to 24ºC, relative humidity from 30% up to 60% |
| Class of Medical Device | IIB |
| Laser Safety Class | 4 |
| Electric Safety Class | I type B |
| Housing Protection Degree | IP20b |
| Footswitch Protection Degree | IPX6 |
hemorrhoids
fissure
fistula
pilonidal-sinus
Safety Goggle
Foot Switch
Carrying Case
Proctology Handpiece
Bare Fiber
Radial Fiber
Conical Fiber
Permanent Fiber
Disposable Tips
Proctology Handpiece
SUI Handpiece
LVR Handpiece
