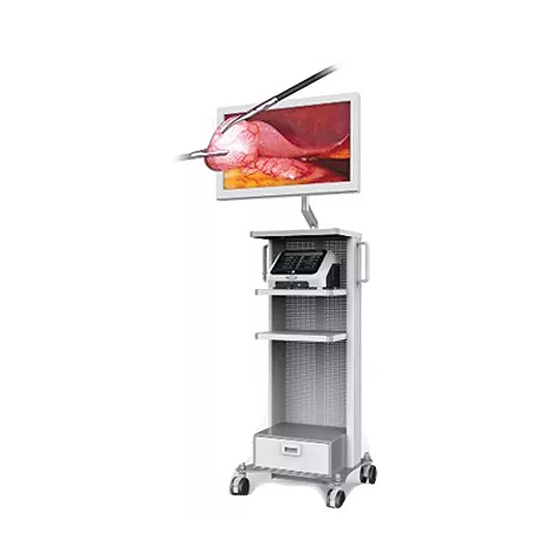

Laparoscope VLS - 200

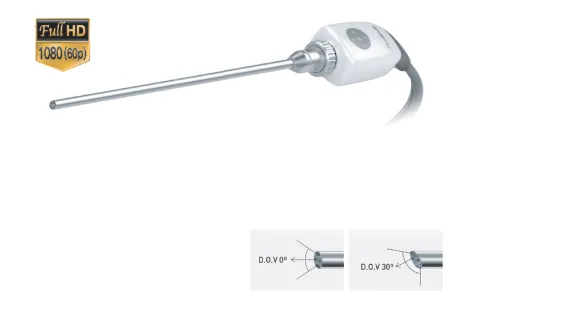

A laparoscope is a slender, tube-like device equipped with a high-intensity light and a high-resolution camera. When inserted through a small incision in the abdominal wall, it transmits real-time images of the internal organs to a video monitor, enabling surgeons to see inside the body without open surgery.

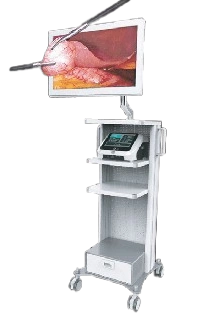

The VLS-200 is a state-of-the-art 3D Video Digital Laparoscopy System developed by Sometech Inc., a South Korean medical device manufacturer. This system introduces a new paradigm in minimally invasive surgery by integrating advanced 3D visualization technology, enhancing surgical precision and efficiency.

Key Features:
  • Depth perception by 3D stereoscopic image.
  • Allows more accurate and precise operation.
  • Natural color and deep depth perception
  • Short learning curve
  • No dizziness on long operations
Download Catalog Inquire Now
Main Features –

Optical Solution for Telemedicine - This is the most suitable medical camera for telemedicine system that enables remote-imaging treatment and prescription through network provided by qualified medical professional.

Full HD (1080i/60 Frames).

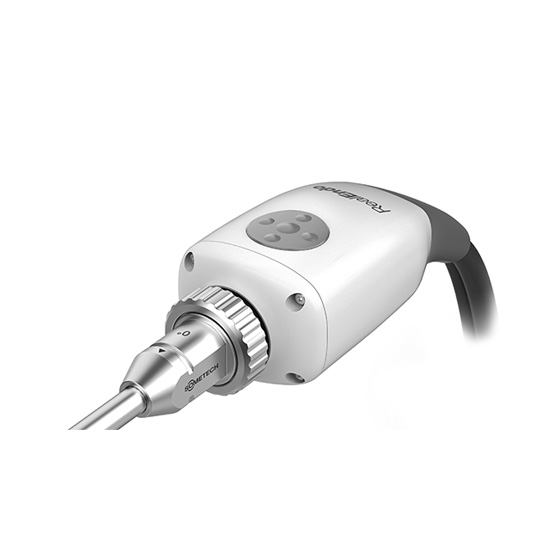

Convenient Joystick - Convenient joystick with each direction can lead to freeze, save and zoom images conveniently

Image Management - Captured images can be selectively saved onto internal memory (SD CARD) or USB. It can be connected to PC via USB port and manage saved images on main units more efficiently. Various comparison and display. (1 to 4 frame)

Image Conversion - Image can be conversed in various ways Normal, Rotation, Mirror, Flip, Negative, Gray

18W LED Lamp - 18W LED Lamp is brighter than 100W Halogen Lamp. 4800。 K color temperature close to natural light makes it possible to realize clearer image than Halogen lam

Easy Connection with PC/Laptops - DCS pro can be easily connected to a computer via USB 2.0. Users can save digital data on a computer.

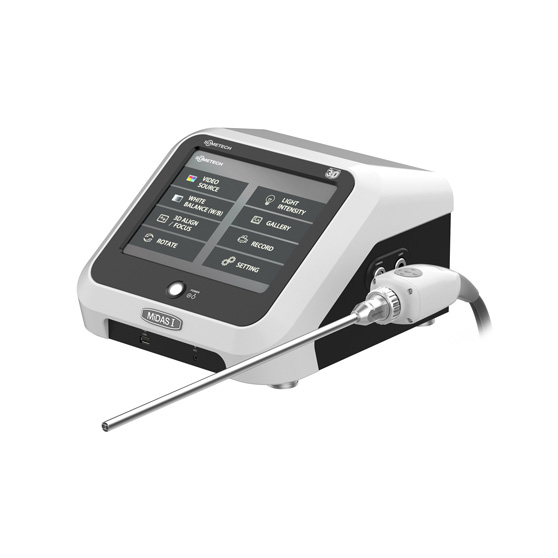

Image System User Interface TFT touch LCD Food Switch
Resolution 1920x1080/ 60p
Image Adjustment Color, Sharpness, Gamma, Exposure White balance(Manual, Push Set, Auto)
Storage device USB 2.0 Format method: FAT 32 Format
Still image Capture 1920x1080 jpg
Video Record 1920x1080/30 fps, H.264/MPEG-4 10AVC
Video outputs Digital interface HDMI(GUI), HDMI(B), HDMI(A)
HD-SDI (Left), HD-SDI (Right) 1980 X 1080/ 60p
Electrical Specification Input Electrical Ratings 100-240 VAC 50/60 Hz
Light source Light source 60W
More than White LED Lamp, 10x104 Lux (Manufacturer measurement method)
Light Distribution Degree 65˚± 9˚
Light source intensity adjustment Levels 1 to 10 (where, Level 0=OFF)
Cooling Method Air forced fan cooling system
Color temperature 5,200° K ± 5% (Manufacturer measurement method)
Weight Approx. 5.3Kg
Dimensions 310mm (W) x 200mm (H) x 330mm (D)

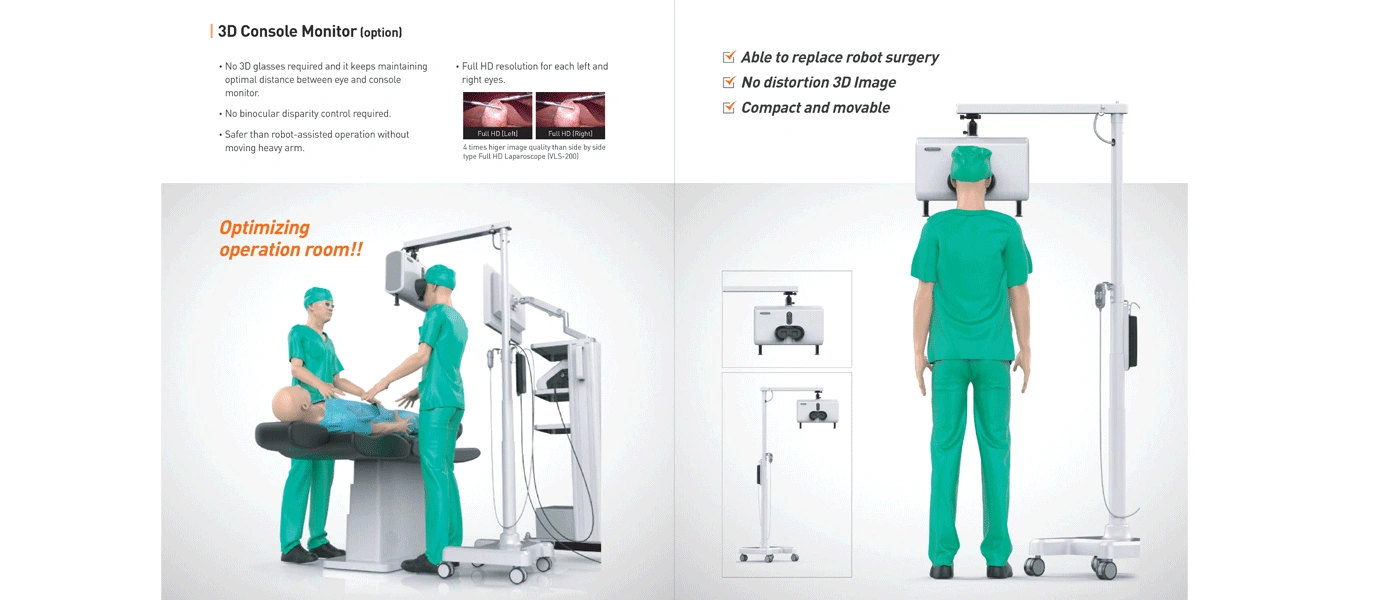

3D Console Monitor

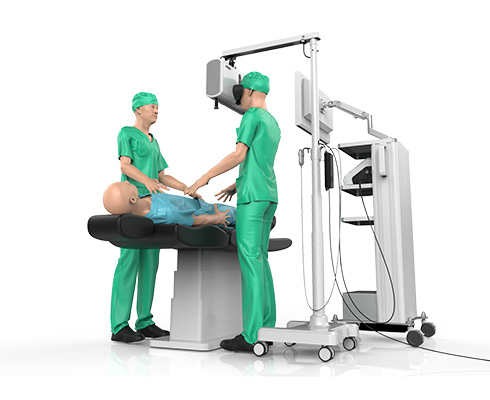

Optimizing Operation Room
  • The world’s first Console 3D monitor
  • No 3D glasses required, and it keeps optimal distance between eye and console monitor.
  • No binocular disparity control required
  • Distortion free 3D image
  • Full HD resolution for each left and right eyes
  • Able to replace robot-assisted surgery & is safer without moving heavy arm
Kim's console
  • Patented Console 3D monitor, no 3D glasses required
  • Safer than Robot-assisted operation without manipulating heavy arm
  • Proper ergonomic maneuverability
  • Combining surgical comfort with practicality
  • Headrest and functional chair
  • Armrest fixation
Combining Surgical Comfort & Practicality
Kim's Chair offers customizable seat configurations with fully adjustable
backrest and armrests to provide optimal support to meet the surgeon’s
specific positioning preferences.

It’s superior pedal access and a stable, yet mobile, design helps to facilitate
clinical performance.

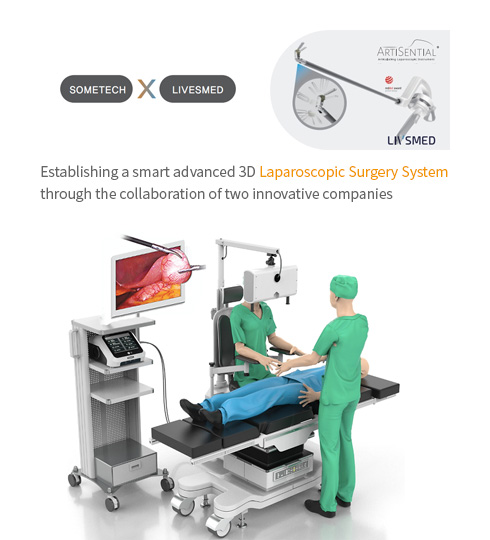

Human Touch 3D Laparoscopy
Surgery advantages
  • 3D Laparoscopy depth perception recognition (Complementing 2D shortcomings)
  • Haptics from surgeon's direct surgery(complementing robot-assisted surgery shortcomings)
  • Precise and safe
  • Minimization of medical accidents
General Surgery
  • General Surgery
  • Colectomy
  • Rectal surgery
  • Common bile resection
  • Gastrectomy
  • Pancreatectomy
  • Bariatric surgery
  • Common bile duct surgery
  • Cholecystectomy
  • Colectomy
  • Splenectomy
  • Gastric bypass
  • Hepatectomy
  • Adrenalectomy
  • Small bowel resection
Cardiothoracic Surgery
  • Lung cancer
  • Pulmonary emphysema
  • Esophagus cancer
  • Esophageal stenosis
  • Chest wall tumor
  • Cardiac surgery
Obstetrics and gynecology
  • Hysterectomy
  • Ovarian cystectomy
  • Myomectomy
  • Hysterectomy
  • Salpingo-Oophorectomy
  • Pelvic lymph node dissection(PLND)
Urology
  • Nephrectomy (Total or partial)
  • Renal cystectomy
  • Pelvic reconstruction
  • Prostate tumor
