Various models meet the treatment of diseases in different parts of the veins of the lower extremities
Innovative and scientific; high thermal efficiency, suitable for intracavitary ecology, clearly visible under ultrasound, close to clinical operation wholeheartedly
Download Catalog Inquire Now
We are here to help.
| Types | Metallic: 16,17,18G; Ceramic: 14,16G, lengths: 100/150/200/250 mm |
| Active Tip | 3.5/11/20/38mm |

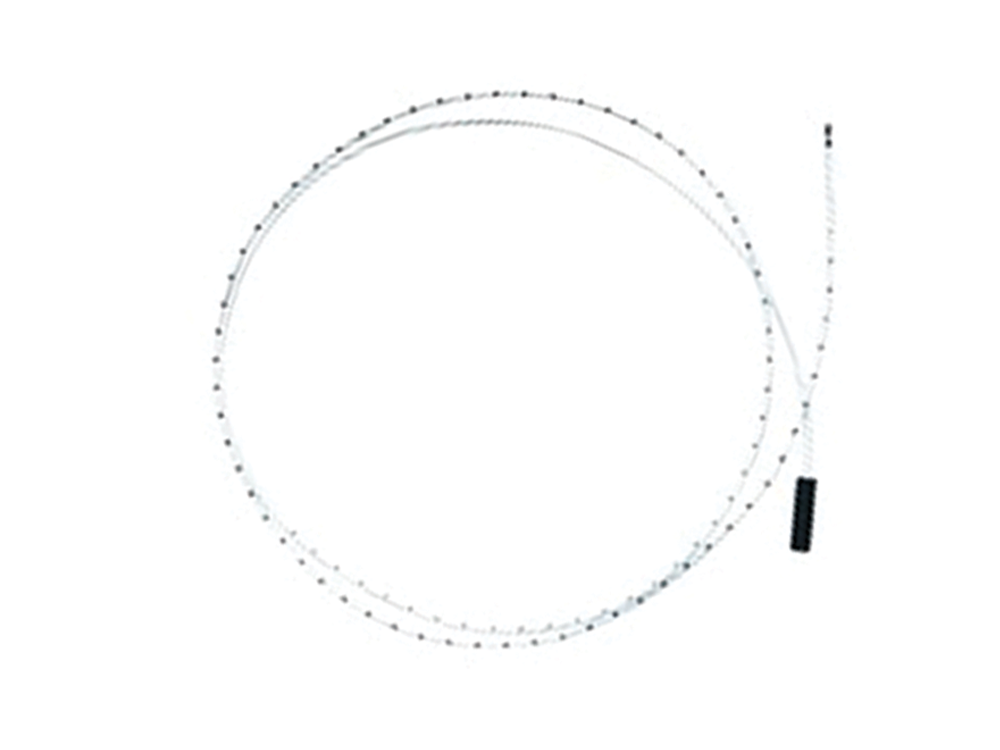

| Varicose Vein Antenna | 6F antenna, 1500mm length, 1500mm reusable cable, 1cm active tip |
| Compatibility | Compatible with respective microwave ablation generator |
| Operating Frequency | 2450 MHz operation |
| Cooling Technology | Inbuilt cooling to prevent tissue charring |
| Ablation Zone | Spherical zones with 14/15/16/18 gauge for optimal coverage and minimal trauma |
| Procedures | Thyroid, breast fibroadenoma ablations with thinner gauges (18G) |
| Applications | Soft tissue ablation for liver, lung, thyroid, kidney, uterine fibroids, and bone |
| Imaging Visibility | High visibility under ultrasound and CT |
| Safety Features | Self-test, remote monitoring, auto cutoff at 45°C |
| Tip Design | Sharp tip for smooth puncturing |
| Cable Length | Up to or greater than 2 meters |
| Temperature Monitoring | Real-time display during procedures |
| Operation Modes | Supports pulse and continuous modes for safety |
| Cross-visibility | Visualization Antenna for best visiblity under USG/CT |
Microwave ablation technology has been successfully applied to various solid tumors including liver cancer, lung cancer, kidney cancer, thyroid, breast cancer, etc. invasive treatment.
Under the guidance of imaging equipment, a disposable microwave ablation needle is punctured percutaneously to the tumor site. The polar molecules in the tissue move at high speed under the action of the microwave field, rub each other to generate heat, and heat up rapidly in the tumor. When the temperature reaches At around 60°C, tumor cell proteins denature and coagulate, leading to irreversible necrosis. The denatured tumor cells will be swallowed by macrophages, lymphocytes, etc., thus completing the whole process of tumor ablation.
Only the size of a needle eye, local inactivation of the lesion, efficient and thorough
Preserve organ function, reduce complications, and ensure the quality of life of patients
Applicable to the treatment of various solid tumors
It can be combined with various treatment methods such as surgery, radiotherapy and chemotherapy to improve the curative effect
Can activate the body’s immune response to tumors and improve patient immunity
