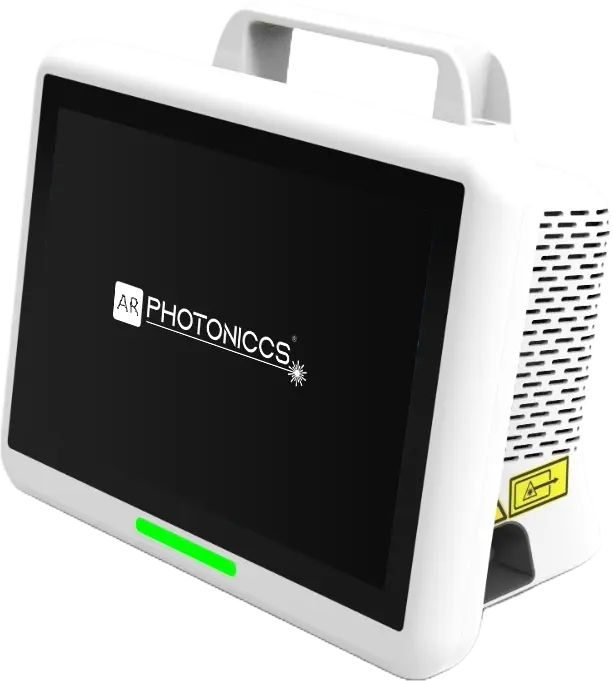

We Offer Diode Lasers with 15w/1470nm wavelength for Proctology, Varicose vein (EVLT), Cosmetic Gynecology, Liposuction & PLDD
We are here to help.
| Laser type | Diode, Semiconductor |
| Wavelength | 1470nm |
| Max Power | 15 watts |
| Aiming beam | 635nm |
| Operation Mode | Continuous or pulsed |
| Pulsed Time | 0.05ms~1000ms |
| Beam Delivery | SMA905 connector |
| Optic Fiber Compatible | Optic fibers having a core from 200um to 1000um, NA=0.22~0.48 |
| Beam Emission Initiation | Footswitch |
| Controller | Microprocessor |
| Display | 10.1” IPS with touch panel Medical approved |
| Cooling | Internal, air and thermoelectric cooling |
| Power supply of the laser | DC 24V/8.33A from the separate AC |
| Power supply of AC adapter | Single phase 100~240VA; 50-60HZ, Max 90w |
| AC Adapter | DC 24V/8.33A Medical approved |
| Laser Dimensions | 27cm × 11cm × 19cm (L × W × H) |
| Laser weight | 2.75kg |
| Laser case dimensions | 56cm × 35cm × 23cm |
| Weight of laser with cases | 9kg |
| Environmental conditions during work | From +10 to 24℃, relative humidity from 30% to 60% |
| Class of Medical Device | IIB |
| Laser safety Class | 4 |
| Electric Safety Class | I type B |
| Housing Protection Degree | IP20b |
| Footswitch Protection Degree | IPX6 |
hemorrhoids
fissure
fistula
pilonidal-sinus
Safety Goggle
Foot Switch
Carrying Case
Proctology Contra Handpiece
Bare Fiber
Radial Fiber
