What is X-ray

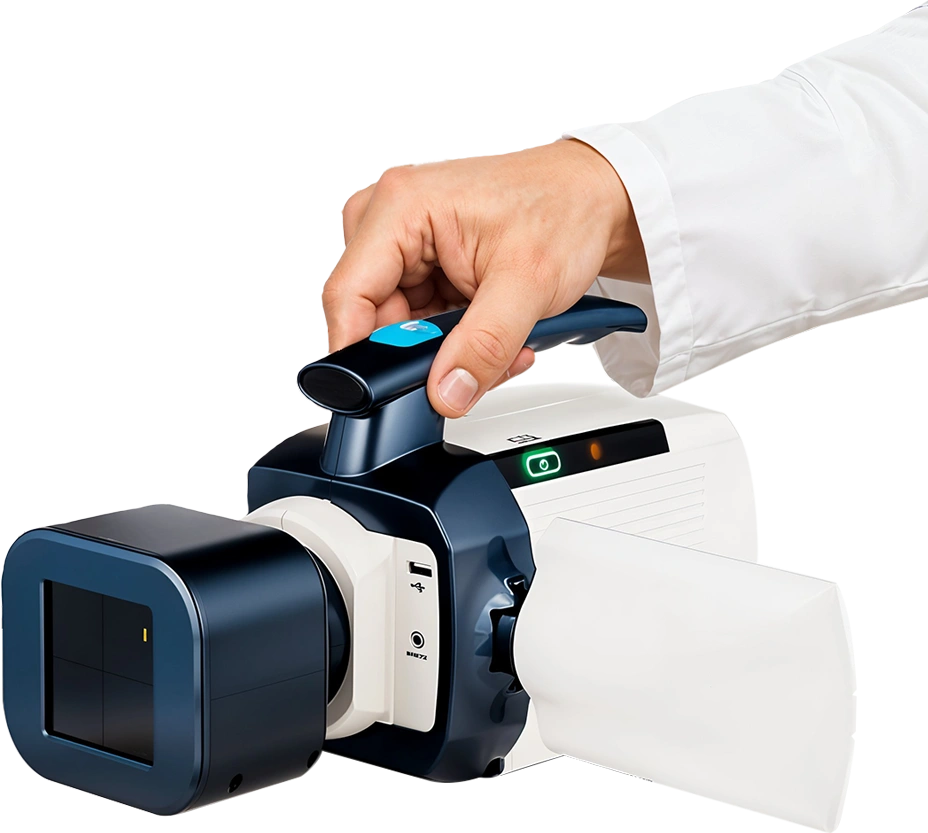

The attached file, titled ADX6000-FB.pdf, appears to be a brochure or specification sheet for a high-powered portable X-ray system called the IRAYA6 ADX6000FB , which is part of DEXCOWIN's signature line of X-ray systems.

X-rays are high-energy electromagnetic waves that can pass through human tissues to create images of internal structures. They reveal differences in tissue density: bones appear white, soft tissues gray, and air black on an image. Invented by Wilhelm Conrad Roentgen in 1895, X-rays revolutionized medical diagnostics by offering a non-invasive visualization of the human body. Applications include orthopedics, pulmonology, trauma care, veterinary medicine, and public health screening.

Download Catalog Inquire Now
How X-Rays Work

X-rays are produced in a vacuum tube where high-speed electrons strike a tungsten target (anode), releasing photons in the X-ray wavelength. These X-rays pass through the patient and are captured by a digital flat panel detector (FPD), which converts them into high-resolution images. The amount of radiation absorbed by each tissue determines image contrast. Digital Radiography software (DR) enhances image sharpness, reduces dose, and allows instant display, storage, and sharing. The ADX6000 integrates a microprocessor-controlled X-ray generator ensuring consistency, safety, and precision exposure.

Tube Voltage 40KV~90KV
Tube current 1mA~6mA
Focal spot 0.8mm
Target angle 16°
Exposure 0.05-1sec
Detector Flat panel sensor/detector
Power Supply 22.5Vdc
Total Filtration More than 3.1mmAI(At 90kV) (Inherent Filtration: 1mmAI, Fixed added filter: 1.9mmAI, Collimator: 0.2mmAl) IRAYA6 only: More than 2.5mmAI(At 90kV) (Inherent Filtration: 1mmAl, Fixed added filter: 1.5mmAl)
  • The system is a HIGH POWERED PORTABLE X-RAY.
  • It is suitable for Medical, Veterinary, and Orthopedic applications.
  • It is marketed with Advanced Radiation Safety features:
    • It has 1/7 lower radiation doses than wall-mounted X-rays.
    • Internal Multiple Lead wrapping ensures no radiation leakage.
    • It reduces radiation exposure to ensure both user & patient safety.
  • It offers an Efficient and faster workflow.
Portable X-Ray Ideal for
  • ICU / NICU: Bedside imaging without disturbing patients.
  • Emergency departments: Rapid trauma or chest evaluation.
  • Field screening: Rural health, mobile vans, military camps.
  • Veterinary & Sports: Outdoor imaging of animals and athletes.
  • Compact, battery-powered design provides up to 200 exposures per charge, making it efficient for continuous use.
  • Wireless operation eliminates dependence on bulky stationary systems.
Portable Diagnostics for
  • Sports & Orthopedics Sports injuries demand rapid assessment for fractures or dislocations.
  • ADX6000’s portability enables real-time imaging at stadiums, training grounds, or events.
  • Quick diagnosis helps coaches and medics decide treatment or transport.
  • Suitable for orthopedics and physiotherapy clinics.
  • Lightweight design ensures easy handling during tournaments or camps.
Neonatal Imaging Simplified
  • Portable X-ray ensures low-dose imaging for newborns.
  • High-sensitivity digital detector requires minimal radiation exposure.
  • Used for assessing neonatal chest conditions (e.g., respiratory distress, pneumothorax) and line placements.
  • Compact system fits between incubators and intensive care stations.
  • Ensures safety, precision, and immediate diagnosis without moving fragile infants.
Critical Care Imaging at the Bedside
  • In ICUs, patient mobility is limited due to ventilation, monitoring lines, or hemodynamic instability.
  • ADX6000 allows on-the-spot chest and abdominal X-rays, avoiding the risk of patient transfer.
  • Ideal for evaluating pneumonia, catheter positions, and post-operative lungs.
  • Reduces cross-infection and improves response time in critical situations.
  • Integrated DR panel allows instant image review and sharing with physicians remotely.
For Animal Healthcare
  • Allows imaging of small pets to large livestock on farms, zoos, or clinics.
  • Eliminates the need for animal transport, reducing stress and injury risk.
  • Capable of imaging fractures, lungs, and abdominal structures in various species.
  • Battery operation supports outdoor and field-based veterinary diagnostics.
  • Pairs with wireless detectors for fast, high-resolution digital imaging.
Community Health & TB Detection
  • India’s National TB Elimination Program (NTEP) emphasizes mobile chest X-ray units for mass screening.
  • ADX6000’s portability enables deployment in mobile diagnostic vans and community camps.
  • Integration with AI-based TB detection software helps identify pulmonary tuberculosis in real time.
  • Ideal for use by NGOs, ESIC, and government health departments.
  • Supports cloud connectivity for centralized report analysis and tele-radiology.
