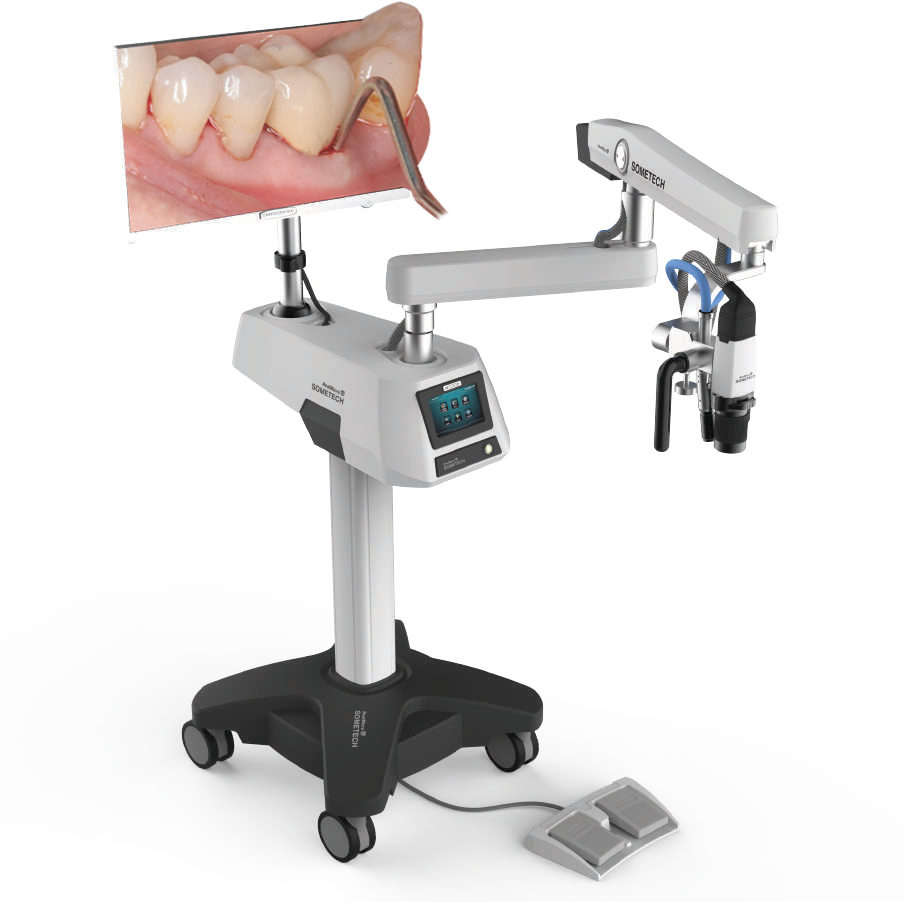

Surgical Microscope

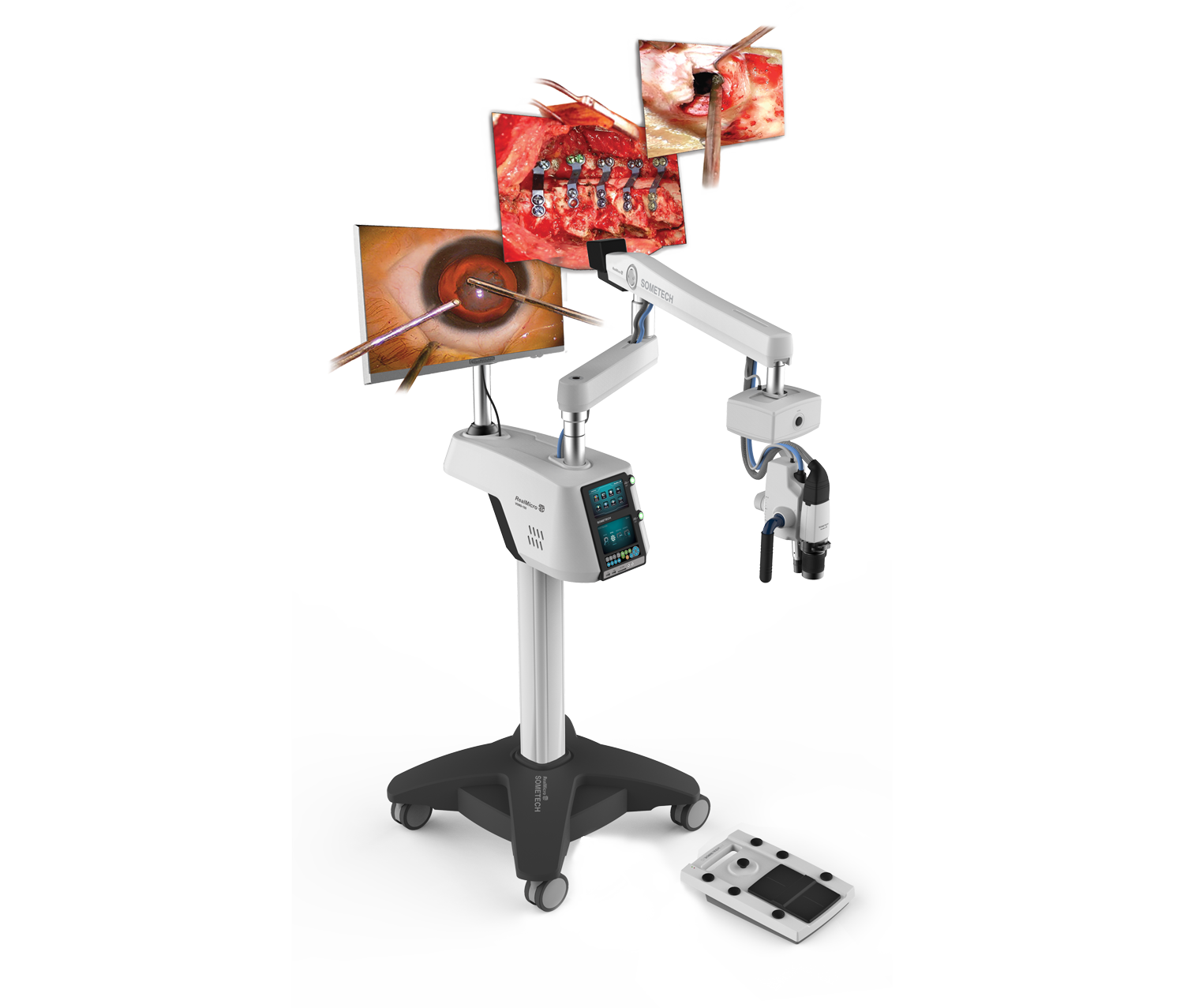

A New Trend In Global Surgery HUD (Head up display) 3D Video Surgical Microscope In the past, Loupe or surgical microscopy was used. Currently, 3D surgery using high-resolution 3D video microscope is being developed to recognize the depth of the lesion through the monitor and to further refine and precise surgery.

Key Features:
  • Exceptionally clear 3D Full HD image quality
  • New generation head-up posture observation
  • Easily controllable camera arm in all directions
  • True depth perception and wide field of view
  • Distortion free images
Download Catalog Inquire Now
Why Dentists Use Them ?

From early detection of cavities to complex endodontics and surgery, loupes are now standard, improving success rates, work quality, and overall career sustainability by protecting the dentist's physical health.

Main unit Dimension 180mm(W)x160mm(D)x80mm(H)
CCU Power 100-240VAC/50-60Hz
3D Muxing format Side by side
Binocular digital zoom control 1.0x ~ 2.0x (Step 0.1x)
Light source LED White LED with UV cut filter
Color temperature 5000°K
Intensity 0(off)~10(max), brighter than xenon 300W light source
LifeTime 60,000 hours
3D Camera Resolution Full-HD(1920x1080) 16:9 Ratio, HDMI connector type
Digital zoom 1.0x ~ 2.0x

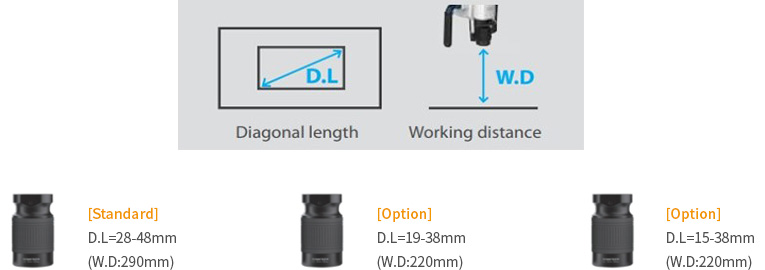

Lens
3D Monitor
(option) 		23" 3D Monitor(standard)
Resolution Full-HD(1920x1080)
dental-laser

LED Lights

  • Highest intensity in its class
  • Pure white light for true color definition
  • LED lamp virtually never needs replacement
  • Battery pack design with twin output levels to attain maximum battery power efficiency.
  • 6 hours of use at level I and 4 hours of use at level II on a single charge Variable light intensity control
  • STAC Power P100 Dental and Surgical LED light source attaches to many variety of loupes
  • Portable Head lamp weighs only 11 gms with 360 Degree rotating and 180 Degree tilting
dental-laser
dental-laser
dental-laser
dental-laser
A New Trend In Global Surgery HUD (Head up display) 3D Video Surgical Microscope
In the past, Loupe or surgical microscopy was used.
Currently, 3D surgery using high-resolution 3D video microscope is being developed to recognize the depth of the lesion through the monitor and
to further refine and precise surgery.

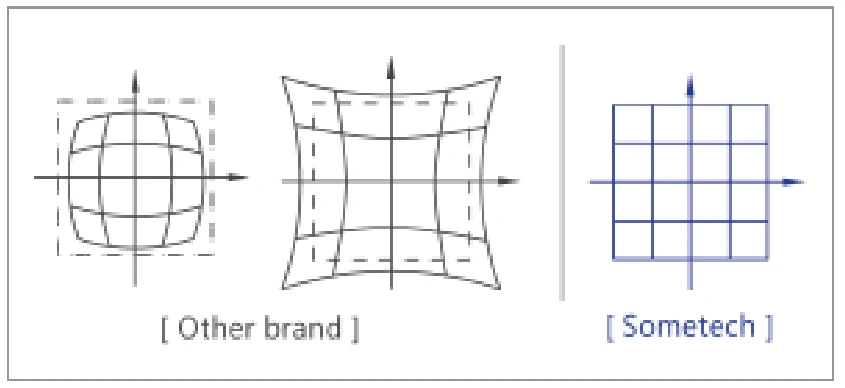

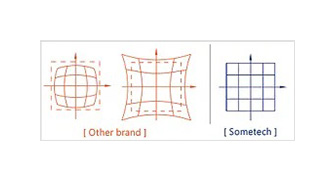

Distortion free
Sometech`s patented lens technology minimizes chromatic aberration.

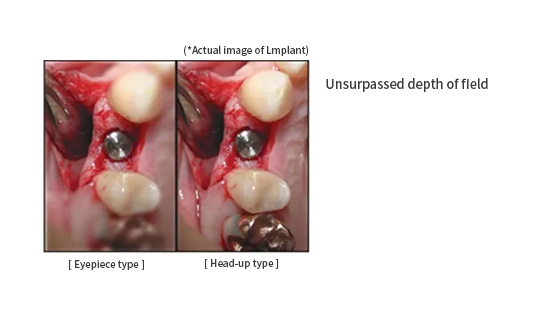

Unsurpassed depth of field
Sometech’s patented image processing technology provides crystal clear images for the immediate and the surrounding area.
Head Up System
Relief from neck and lumbar pain, eye strain and headache.

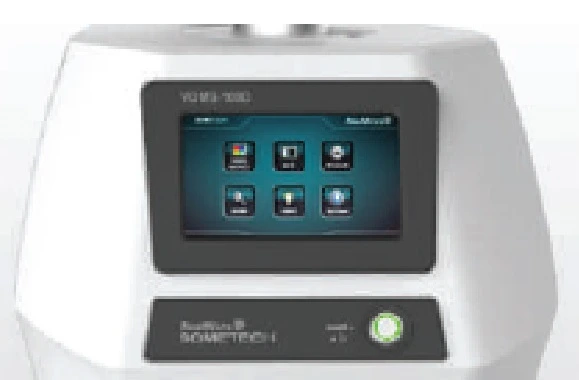

Touch screen GUI and recorder
VOMS-101D has a built in GUI

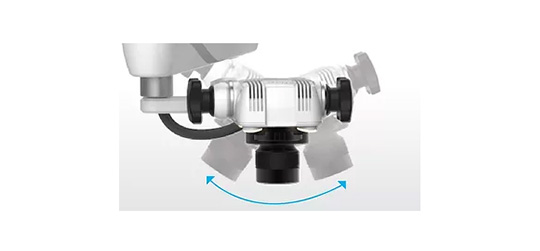

Easy and precise movement
Ergonomic design allows easy and precise movement.
Surgeons can easily place the camera to focus on surgical area.

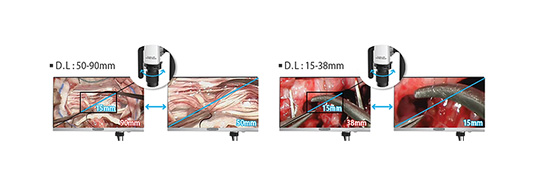

2.0X optical zooming by turret
Adjustable optical zooming up to 2 times by simple twist of turret

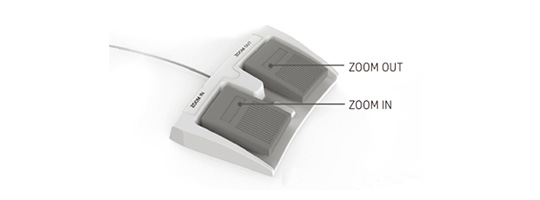

2.0x Digital zooming (Footswitch)
It has optical and digital zooming system, optical zooming up to
2 times and digital zoom 2 times. Easy to control with the main
unit(GUI) and foot switch during surgery.
