What is X-ray

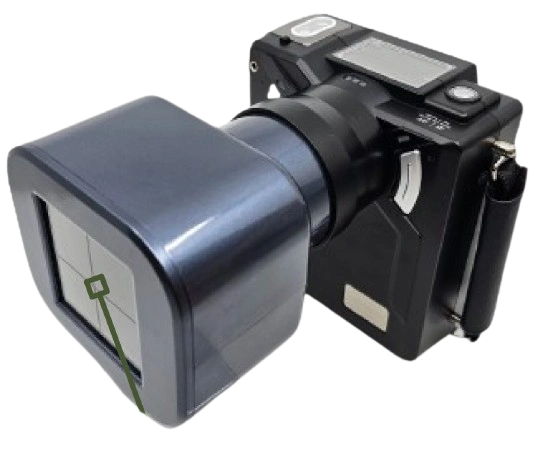

The DX3000 is equipped with cutting-edge battery technology, enabling it to capture up to 400 X-ray images on a single charge. This advanced feature allows for extended use, making it an ideal choice for busy medical professionals who require reliable and efficient equipment.

  • Pioneer Status : The foundation of Dexcowin's portable X-ray line.
  • Design : Extremely lightweight (as low as 1.8 kg or 4 lbs) and features an ergonomic, compact, camera-like style for ease of use. It often includes dual exposure buttons and a hand strap for secure, one-handed operation.
  • Primary Application : Originally focused on Dental (intraoral radiography), but is also used in Veterinary and Forensic fields.
  • Detector Compatibility : Highly versatile; compatible with Film, Digital Sensors, and Phosphor Storage Plates (PSP).
Download Catalog Inquire Now
How X-Rays Work

X-rays are produced in a vacuum tube where high-speed electrons strike a tungsten target (anode), releasing photons in the X-ray wavelength. These X-rays pass through the patient and are captured by a digital flat panel detector (FPD), which converts them into high-resolution images. The amount of radiation absorbed by each tissue determines image contrast. Digital Radiography software (DR) enhances image sharpness, reduces dose, and allows instant display, storage, and sharing. The ADX6000 integrates a microprocessor-controlled X-ray generator ensuring consistency, safety, and precision exposure.

Tube Voltage 70 KV
Tube current 2mA
Focal spot 0.4mm or more
Target angle 12 or more
Exposure 0.01 sec - 2.0 sec (varying setting provision)
Detector Film/Digital Sensor/PSP
Power Supply 14.8V (Rechargeable Battery)
Heat Capacity 4000-6000 Minimum
External Dimensions 350 (W) x 300 (D) x 200 (H)mm. x-ray sources
Weight 2.75 kg including batteries (Handy portable)
  • Radiation Safety : Greatest Reduction in X-ray Exposure: It is certified as safe for handheld use and emits as little as 1/7th the radiation compared to conventional wall-mounted X-ray machines. This is achieved through multiple lead layers wrapping the generator and cone, minimizing leakage radiation.
  • Mobility & Convenience : Ultimate Portability: Its lightweight and cordless design means every room can be an X-ray room. This eliminates the need for constructing separate, shielded X-ray rooms, saving time and construction costs. It is ideal for pediatric patients, special needs patients, and home-health use, as the practitioner can stay with the patient.
  • Battery Performance : High-Volume Imaging: Features a rechargeable Li-polymer battery, capable of capturing over 250 to 400 X-ray images on a single charge. Full charging takes approximately 1.5–2.0 hours.
  • Imaging : Precise Intraoral Imaging: Features a small focal spot (0.4mm or 0.8mm) and an Aiming Light to ensure accurate X-ray positioning, which is critical for dental radiography.
  • User Interface : Equipped with a Graphic LCD/OLED display and an intuitive UI for setting exposure times for different anatomies (e.g., incisor or molar X-ray images).

Advance Radiation Safety

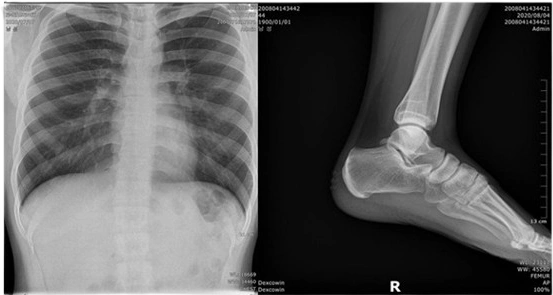

  • The system captures chest X-rays efficiently.
  • It ensures minimal radiation exposure to patients, operators and attendants.
  • Neck strap to prevent accidents.
  • 1/7 reduced radiation than other x-ray machines.
  • Lead wrapping the generator and cone.
  • Large 350 × 400 mm detector for imaging all body parts.
  • Minimum spatial resolution of 3.5 lp/mm or higher.

Highlights

  • Ensures both user & patient safety by reducing radiation exposure.
  • Radiation exposure time is adjustable, ensuring minimal exposure for any anatomy per ALARA guidelines.
  • The detector offers a high resolution of at least 2500 × 3000 pixels, a 140-micron pixel pitch, and 16-bit or higher A-to-D conversion.
  • It is robust, sealed, and certified for water resistance, dust resistance, and drop resistance (non-glass), ensuring durability and reliability.
  • Equipped with an X-ray beam limiting and centering system to minimize scatter radiation and ensure FOV centering.
