Laser Lithotripsy

Calculi in the bladder, ureter or kidney are fragmented by rapid evaporation of residual water inside the stone upon absorption of the laser radiation. At the long pulse setting the AR Photoniccs Holmium laser does not apply external kinetic force, thus preventing the calculi from being pushed further inside the ureter.

The AR Photoniccs Flexible reusable laser fiber insertions heath provides protection of the flexible scope against damage during insertion of the laser fiber. Please refer to our laser fiber brochure

Treatment Of Bph/prostate

AR Photoniccs Holmium lasers offer different treatment modalities for BPH. Depending on the surgical situation and the delivery system used the adenoma may be resected, enucleated (HoLEP) or ablated (HoLAP). All treatment modalities benefit from the excellent haemostatic properties of the AR Photoniccs Holmium laser which is provided by the long pulse duration in the tissue mode. The patient benefits from the bloodless laser treatment, early catheter removal, immediate symptomatic improvement, better urinary flow and a shorter hospital stay.Resected tissue is available for subsequent biopsy.

Download Brochure

Dual Pedal Foot Switch

Orange and blue pedals can be used to easily switch for example between "Power Fragmentation" and "Popcoming". An additional standby function allows the user to activate/deactivate the laser as needed.

USES

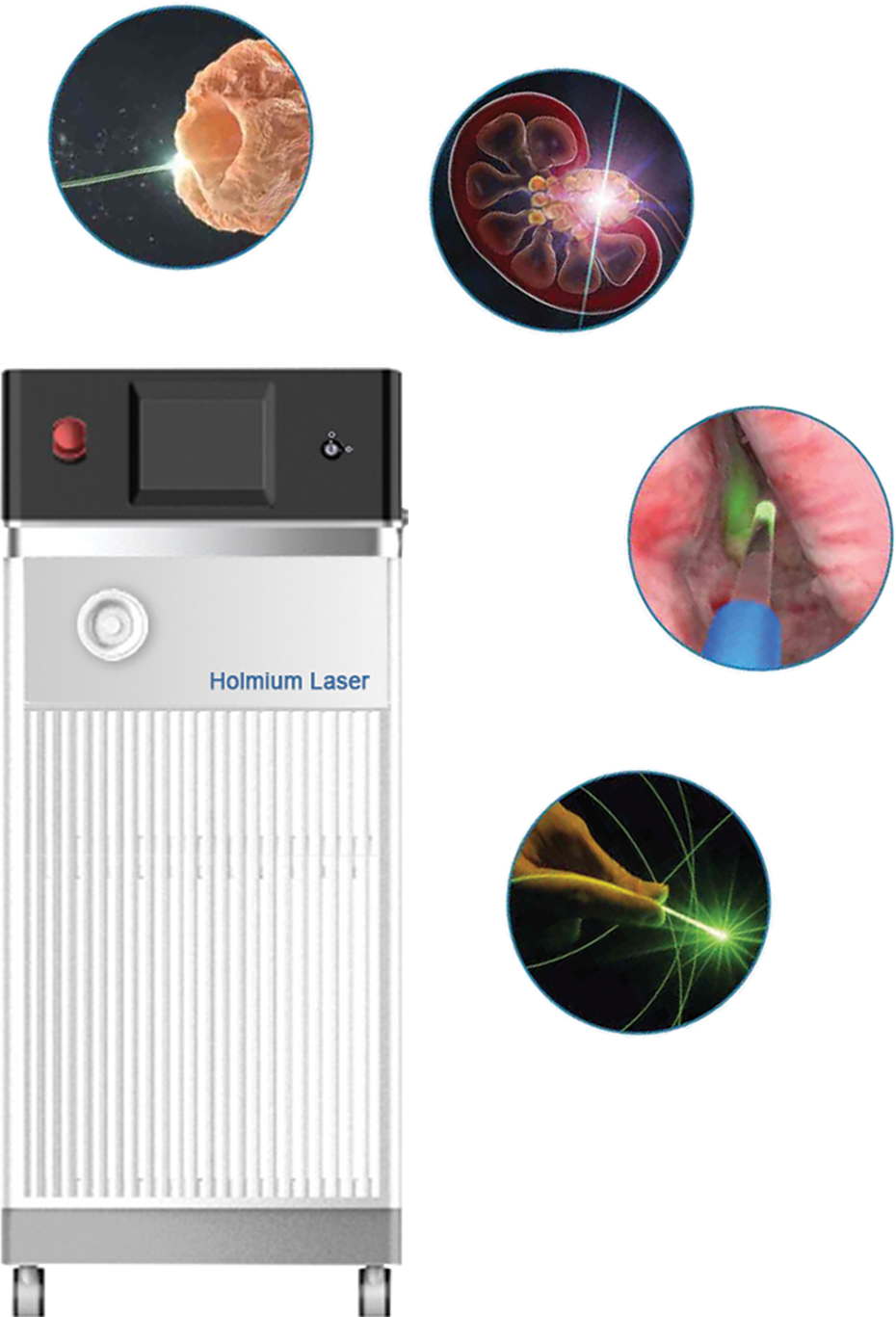

AR Photoniccs HP Series holmium laser system is the ideal solution for stone and BPH treatment in urology as well as other interventions across a range of specialties:

  • Urology
  • Gynecology
  • Oral Surgery
  • Arthroscopy
  • Gastroenterology
  • ENT
  • Dermatology
  • General Surgery
  • Vascular Surgery
  • Thoracic Surgery
  • Orthopedics
  • Plastic Surgery

    • Opening Of Strictures

    Strictures in the ureter and the urethra are easily opened-virtually without any bleeding

    Spine

  • Minimally invasive spine surgery (MISS)
  • Foraminoplasty
  • Discectomy PLDD


    • ENT

    • Endonasal surgery
    • Larynx surgery Ablation of nasal and laryngeal polyps

    Spinal Surgery

    AR Photoniccs Holmium laser offers a variety of treatment options for cervical and lower back pain patients. The AR Photoniccs Holmium laser ablates soft tissue such as disk material and hard tissue such as bone and osteophytes in Laser Foraminoplasty. In Laser Discectomy it removes residual nucleus pulposus mat erial in preparation for stabilisations and fusions. The thermal load to the surrounding tissue is controlled by the shallow penetration of the Holmium laser radiation and the adjustable pulse duration.

    Laser Fiber

    AR Photoniccs Laser System can be operated with a large range of fibers, depending on the application, flexibility and settings required.

    Standard Fibers

    For general use in stone and soft tissue treatments

    Ball Tip Fibers

    Strongly simplify the insertion in already bent scopes

    Performance Fibers

    Designed to deliver great power even with small fibers

    Gastro Fibers

    For general use in stone and soft tissue treatments

    Power : max. 40 Watts

    Power : max. 60 Watts

    Power : max. 80 Watts

    Power : max. 100 Watts

    Power : max. 120 Watts

    Power : max. 160 Watts

    Technical Data

    Output Power(Max.) 40 Watts 60 Watts 80 Watts 100 Watts 120 Watts 160 Watts
    Pulse Frequency 5–20 Hz 5–40 Hz 5–40 Hz 2–80 Hz 2–100 Hz 2–120 Hz
    Pulse Energy 0.5–4.0 J 0.1–4.0 J 0.1–4.5 J 0.1–6.0 J 0.1–7.0 J 0.1–8.0 J
    Laser Type Holmium laser
    Wavelength 2.1 μm
    Pulse Duration 300–600 μs
    Aiming Beam Green 532 nm, <1mW, can be fine-tuned
    Cooling System Internal cooling system
    Fibers Reusable 200 μm, 275 μm, 365 μm, 550 μm, 800 μm, 1000 μm
    Main Supply AC 220V–240V / 50Hz–60Hz, single phase
    Dimensions (wxdxh) 89cm x 45cm x 90cm 89cm x 45cm x 90cm 89cm x 45cm x 90cm 89cm x 45cm x 90cm 89cm x 45cm x 90cm 89cm x 45cm x 90cm
    Weight 110 kg 135 kg 150 kg 160 kg 160 kg 160 kg
