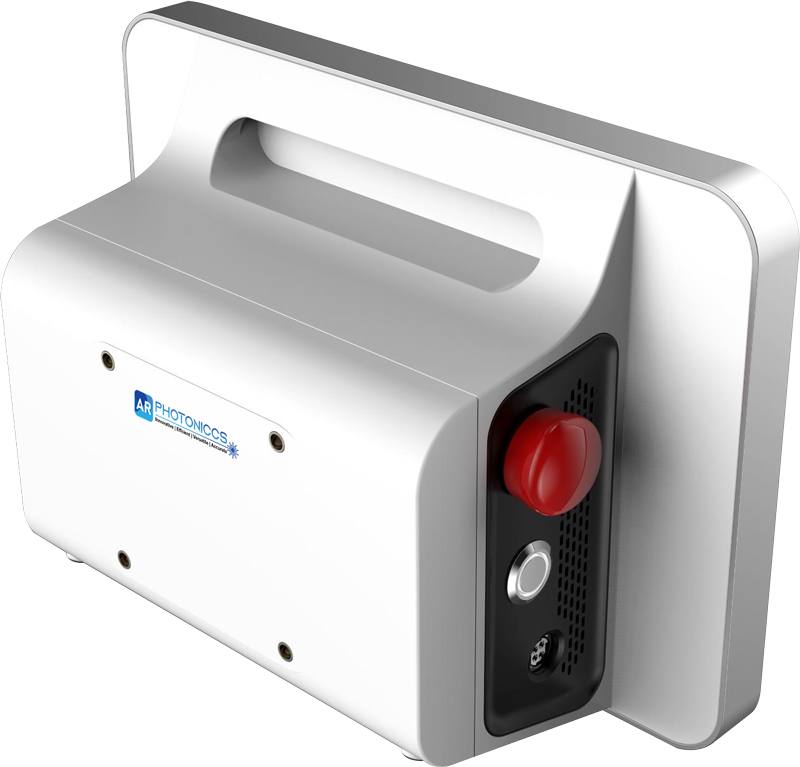

We Offer Diode Lasers with 15 watts/1470nm + 635nm wavelength for Proctology, Varicose vein (EVLT), Cosmetic Gynecology, Liposuction & PLDD
Safety Goggle
Foot Switch
Carrying Case
Proctology Contra Handpiece
Bare Fiber
Radial Fiber
Conical Fiber
Permanent Fiber
Disposable Tips
Proctology Straight Handpiece
SUI Handpiece
LVR Handpiece
hemorrhoids
fissure
fistula
pilonidal-sinus
| Model Name | Pulse-ART |
|---|---|
| Laser Mode | Diode Laser |
| Laser Type | Diode, Semiconductor |
| Wavelength | 980nm+1470nm+635nm |
| Max Power | 30.5 watts |
| Aiming Beam | 635nm, < 5mw |
| Operation Mode | Continuous or Modulated |
| Pulsed Time | 0.05ms - 1000ms |
| Beam Delivery | SMA905 connector |
| Optic Fiber Compatible | Optic fibers having a core from 200um to 1000um, NA=0.22~0.48 |
| Beam Emission Initiation | Footswitch |
| Controller | Microprocessor |
| Display | 10.1” IPS with touch panel Medical approved |
| Cooling | Internal, air and thermoelectric cooling |
| Power supply of the laser | DC 24V/10A from the separate AC |
| Power supply of AC adapter | Single phase 100~240VA; 50-60HZ, Max 90w |
| AC Adapter | DC 24V/10A Medical approved |
| Laser Dimensions | 27cm * 24.5cm x 9cm |
| Laser Weight | 2.75kg |
| Laser Case Dimensions | 53cm × 38cm × 23cm |
| Weight of Laser with Case | 12kg |
| Environmental Conditions During Work | From +10 to 24ºC, relative humidity from 30% up to 60% |
| Class of Medical Device | IIB |
| Laser Safety Class | 4 |
| Electric Safety Class | I type B |
| Housing Protection Degree | IP20b |
| Footswitch Protection Degree | IPX6 |
