Irreversible Electroporation (IRE)

Irreversible electroporation (IRE) is a new tissue ablation technique in which micro to millisecond electrical pulses are delivered to undesirable tissue to produce cell necrosis through irreversible cell membrane permeabilization.

Download Brochure

IRE Generator

  • IRE & RF dual energy platform
  •   Switching to RF mode to do needle track ablation with same probes after IRE procedure, effectively eliminates the potential implant metastasis and reduces the risk of bleeding.

  • Selective Targeting
  •   The IRE system selectively targets the tumor cells and spare surrounding blood vessels, nerves, and other critical structures.

  • Non-thermal ablation
  •   The IRE system does not depend on heat to destroy tumor cells. Instead, it utilizes electrical pulses to induce irreversible electroporation, then leads to apoptosis. It has no heat sink effect, also no thermal damage to surrounding tissues.

  • Induction of apoptosis
  •   Irreversibly damaged cells may undergo apoptosis followed by necrosis with time after electroporation.

  • Activate immune system
  •   IRE could be regarded as a potential immunomodulatory treatment and might induce extensive changes of immune cells or indexes after ablation.

  • Build-in ECG synchronization module
  •   Protect against arrhythmia.

IRE Probes

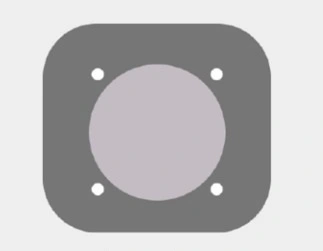

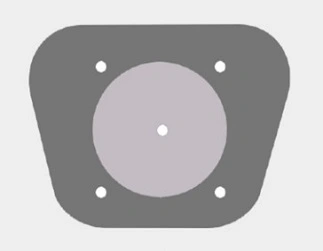

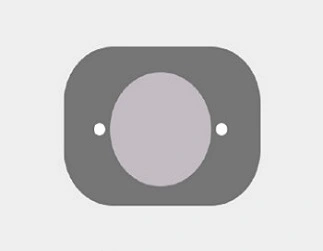

Probes Placement

IRE Generator

Specification Description
IRE Generator An IRE generator, with 6 probe outputs, max. output voltage 3000v, rated output current 50A.
Model Name Pulse - IRE

IRE Probes

Needle Gauge Needle Length Working Length Probe Type
19 G25 cm0-40 mm adjustableMonopolar ordinary probe
19 G18 cm0-40 mm adjustableMonopolar ordinary probe
19 G15 cm0-40 mm adjustableMonopolar ordinary probe
19 G13 cm0-40 mm adjustableMonopolar ordinary probe
19 G25 cm0-40 mm adjustableMonopolar activation probe
19 G18 cm0-40 mm adjustableMonopolar activation probe
19 G15 cm0-40 mm adjustableMonopolar activation probe
19 G13 cm0-40 mm adjustableMonopolar activation probe
15 G25 cm40 mmBipolar probe
15 G25 cm30 mmBipolar probe
15 G25 cm20 mmBipolar probe
15 G25 cm10 mmBipolar probe
15 G15 cm40 mmBipolar probe
15 G15 cm30 mmBipolar probe
15 G15 cm20 mmBipolar probe
15 G15 cm10 mmBipolar probe
18 G25 cm40 mmBipolar probe
18 G25 cm30 mmBipolar probe
18 G25 cm20 mmBipolar probe
18 G25 cm10 mmBipolar probe
18 G15 cm40 mmBipolar probe
18 G15 cm30 mmBipolar probe
18 G15 cm20 mmBipolar probe
18 G15 cm10 mmBipolar probe
