VOMS-202E 3D Video Surgical Microscopy System

Full-HD (1920X1080, 60p)
  • Comfortable treatment environment provided through implementation of Head-Up posture using 3D microscope
  • Helpful for various surgical training and medical education
  • Provides excellent sense of depth and immersion
  • Easy and precise operation with convenience
  • Monitor magnification (based on 23-inch) from 12x or 24x, and up to 48x when using digital zoom
Download Brochure

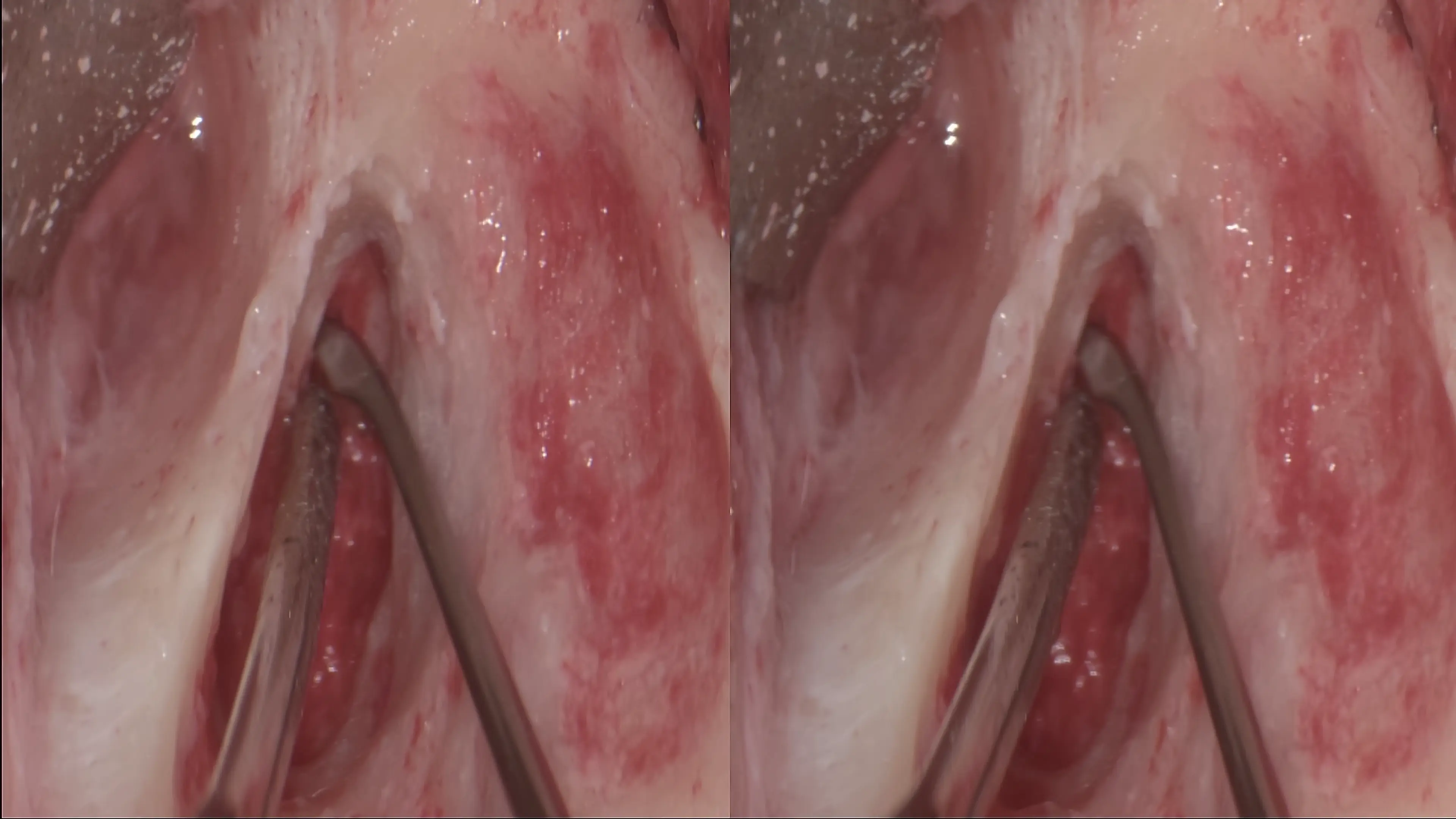

Realistic Stereo image

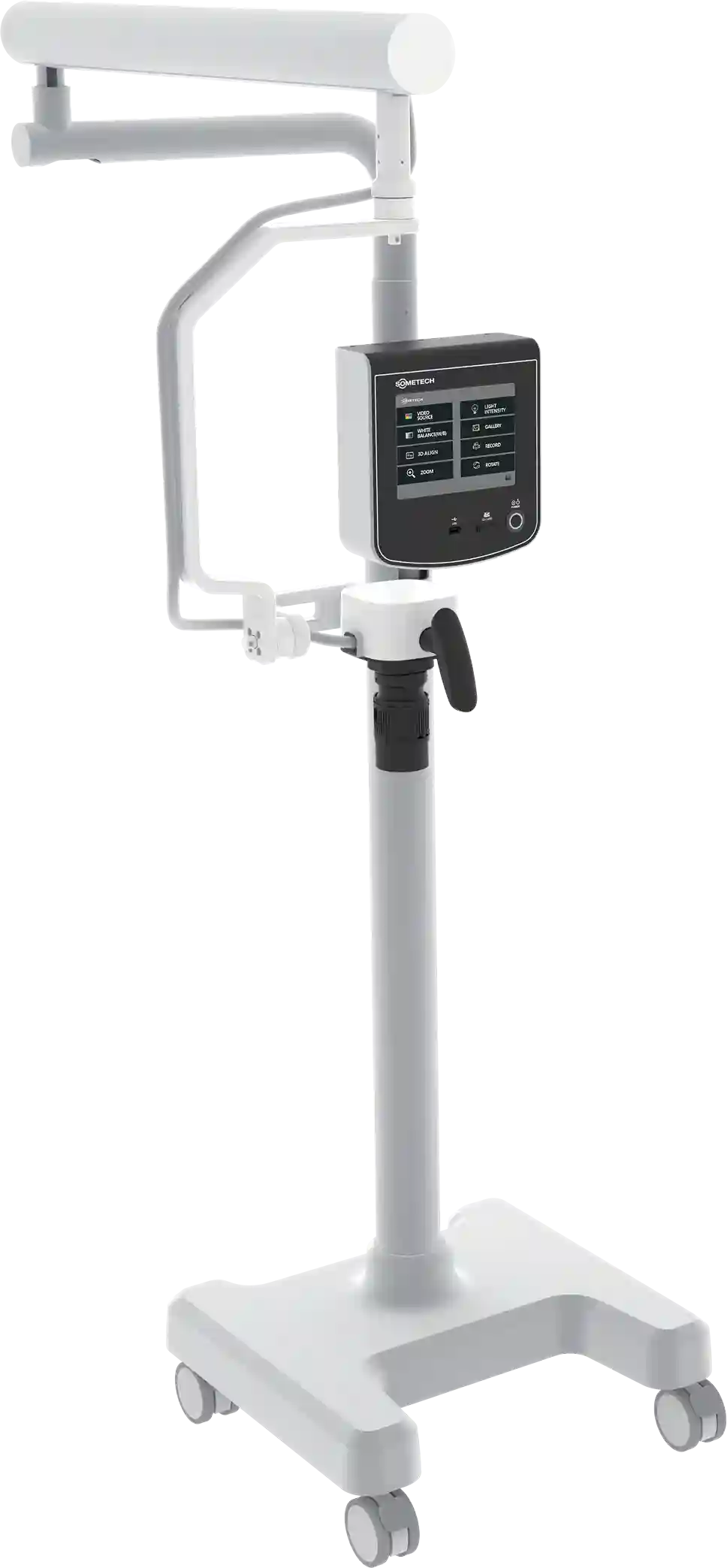

Microscope Device

D.L = 24/48mm (Diagonal Length)

Applicable Areas
  • Ear Disorders – Tympanum and middle ear surgery, artificial ossicle implantation
  • Nasal Disorders – Nasal cavity and turbinate surgery, tumor removal
  • Neck Disorders – Laryngeal and pharyngeal surgery, cervical tumor surgery
Middle Ear Infection Surgery Middle ear infection surgery

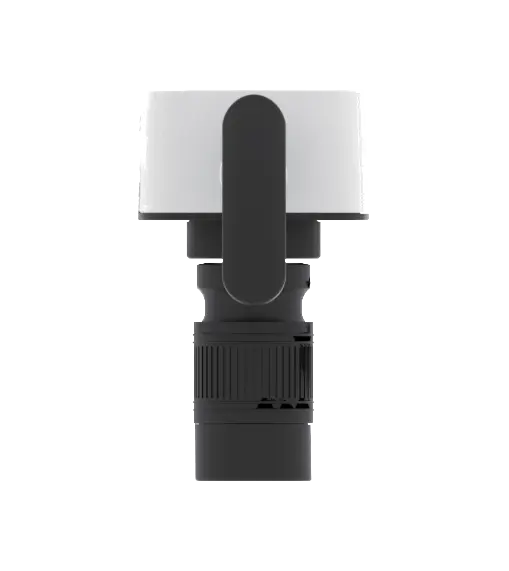

Standard Lens Standard Lens

[Standard]
D.L = 24/48mm
W.D = 270mm

Working Distance

A 3D microscope is a specialized device used to diagnose and treat diseases related to the ear, nose, and throat. It provides higher magnification and brighter illumination than conventional microscopes. The 3D microscope displays the surgical area in three dimensions, allowing the surgeon to perceive depth as if seeing it in real life. This enables more precise surgical planning and manipulation, making it highly effective for surgeries involving anatomically complex areas.

Technical Specification

Input Electrical Rating 100~240V AC, 50/60Hz, 230VA
Light source LED - White LED with UV cut filter
Color temperature: 5000°K ± 10%
Video Compressing Method MPEG-4 / H.264 File Extension (AVI)
Resolution FULL-HD 3D / 1920 x 1080 / 60p
Video Output 3x HDMI
3D Format Side-by-side (SBS)
Media Storage USB2.0 (FAT32 Format)
User Interface 8-inch TFT LCD, Foot Switch, Wired Remote Control
Magnification Video Magnification based on 23-inch Monitor: D.L 24mm (24x) / 48mm (12x)
Digital Zoom: 1.0x ~ 2.0x
Working Distance 270mm
Type of protection against electric shock Class 1 Equipment
