We Offer Diode Lasers with 15 watts/1470nm + 635nm wavelength for Proctology, Varicose vein (EVLT), Cosmetic Gynecology, Liposuction, PLDD & Wound Healing
Safety Goggle

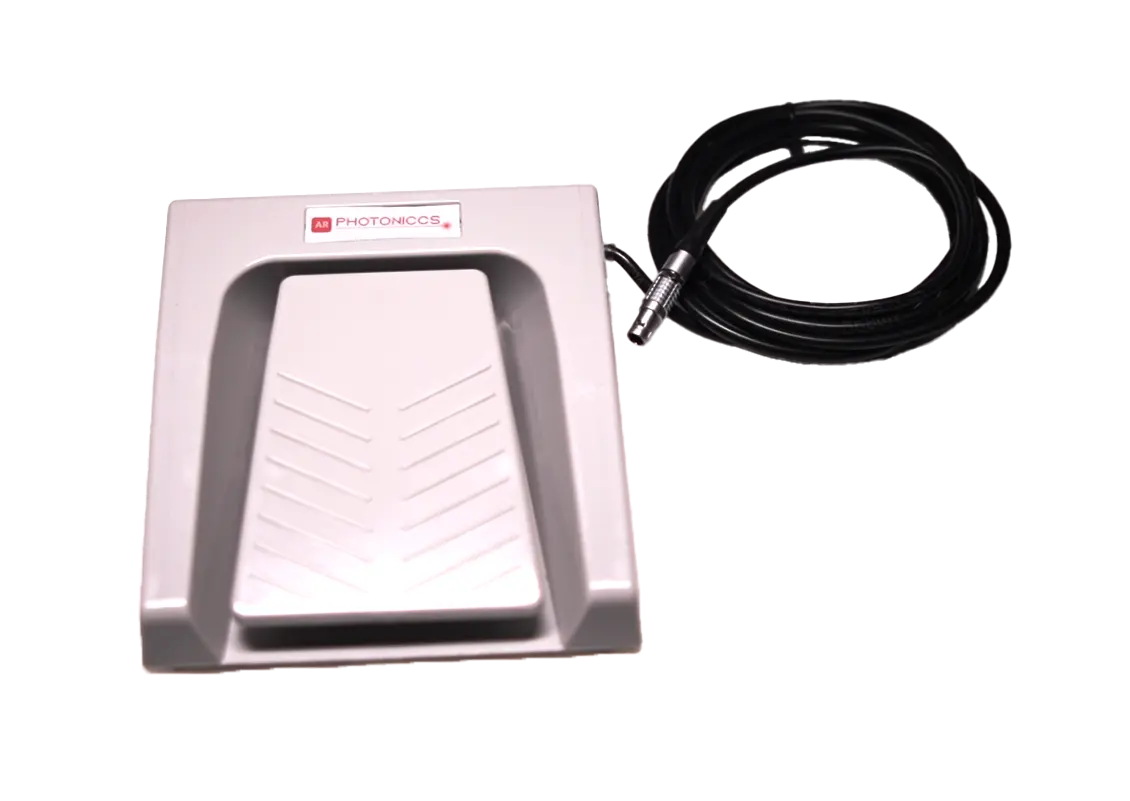

Foot Switch
Carrying Case

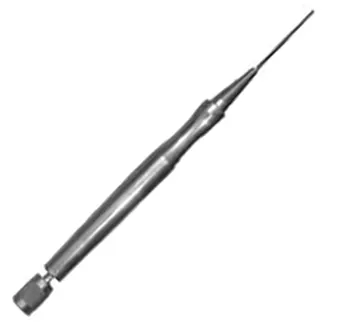

Proctology Handpiece

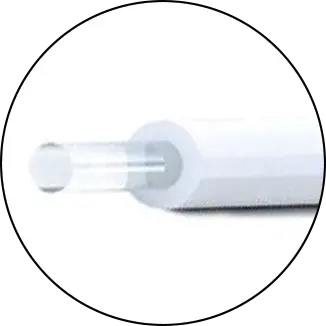

Bare Fiber
Radial Fiber

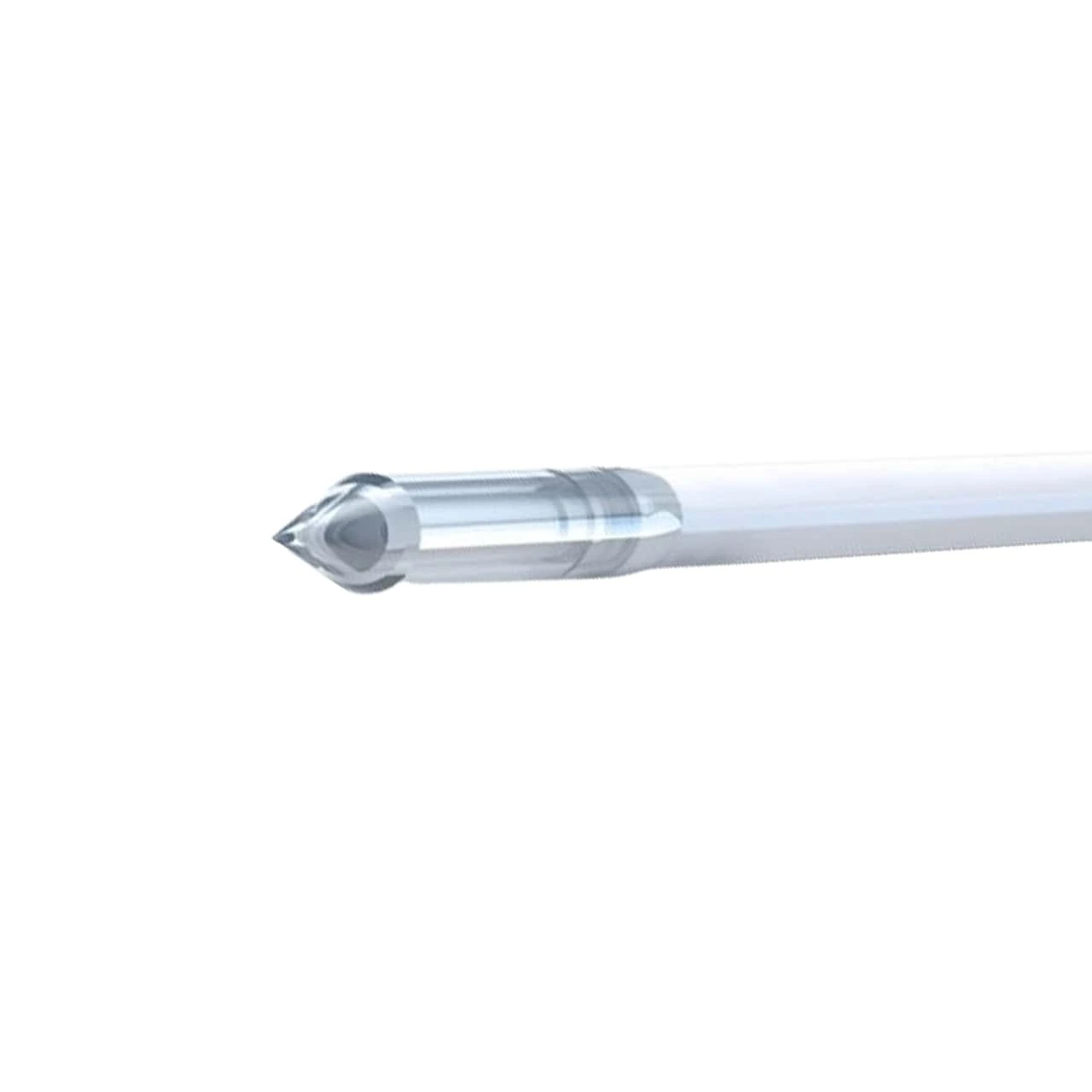

Conical Fiber

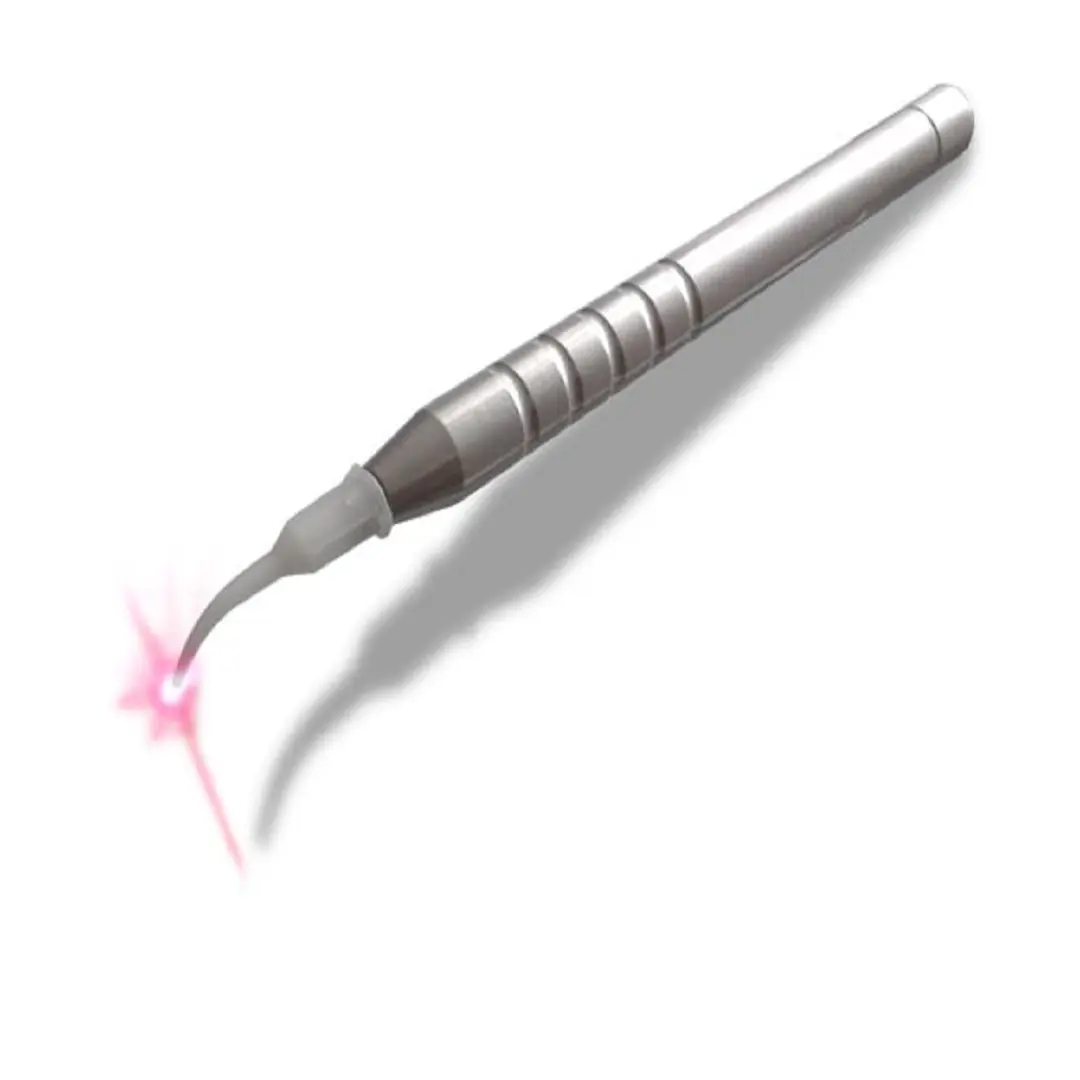

Permanent Fiber
Disposable Tips
Proctology Handpiece

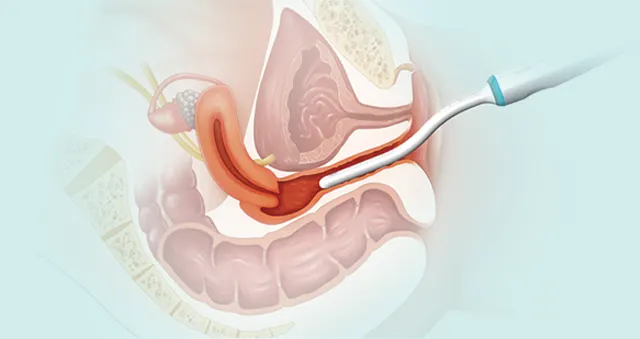

SUI Handpiece

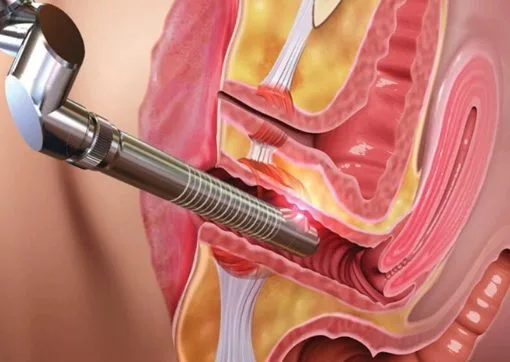

LVR Handpiece
hemorrhoids
fissure
fistula
pilonidal-sinus
| Model Name | Pulse - ARD |
|---|---|
| Laser Mode | GaAs Dide Laser |
| Laser Type | Diode, Semiconductor |
| Wavelength | 1470nm + 635nm |
| Max Power | 15 watts |
| Aiming Beam | 635nm, < 5mw |
| Operation Mode | Continuous or pulsed |
| Pulsed Time | 0.05ms ~ 1000ms |
| Beam Delivery | SMA905 connector |
| Optic Fiber Compatible | Optic fibers with core from 200um to 1000um, NA=0.22 ~ 0.48 |
| Beam Emission Initiation | Footswitch |
| Controller | Microprocessor |
| Display | 10.1” IPS with touch panel, medical approved |
| Cooling | Internal, air and thermoelectric cooling |
| Power Supply of the Laser | DC 24V / 8.33A from separate AC |
| Power Supply of AC Adapter | Single phase 100 ~ 240VA; 50-60Hz, Max 90w |
| AC Adapter | DC 24V / 8.33A, Medical approved |
| Laser Dimensions | 27cm × 11cm × 19cm |
| Laser Weight | 2.75kg |
| Laser Case Dimensions | 56cm × 35cm × 23cm |
| Weight with Case | 9kg |
| Environmental Conditions | +10 to 24℃, RH 30% ~ 60% |
| Class of Medical Device | IIB |
| Laser Safety Class | 4 |
| Electric Safety Class | I type B |
| Housing Protection Degree | IP20b |
| Footswitch Protection Degree | IPX6 |
