The Thulium laser is an advanced solid-state or fiber-based laser system that operates primarily in the wavelength range of around 1940–2010 nanometers. It is used in various medical fields, especially urology, ENT, and surgery, for its precision, safety, and soft-tissue handling capabilities.
Thulium laser treatment involves the use of a Thulium:YAG or Thulium Fiber Laser, which emits a continuous or pulsed laser beam. This laser is used to cut, vaporize, or enucleate excess prostate tissue through the urethra, without any external incision.

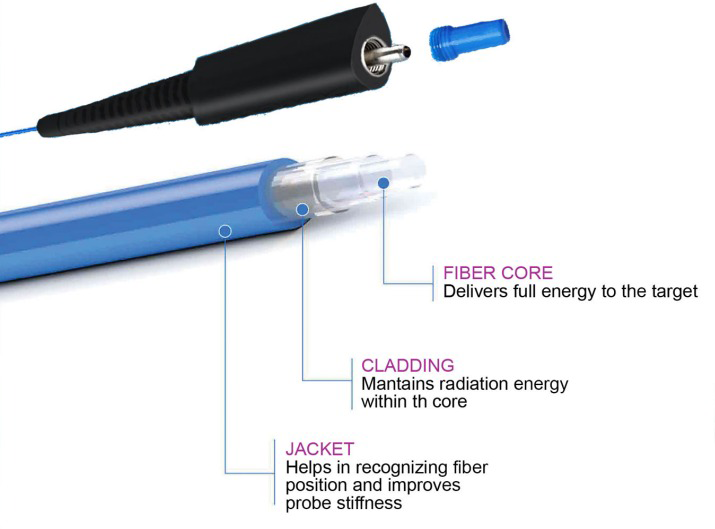

AR Photoniccs Laser System can be operated with a large range of fibers, depending on the application, flexibility and settings required.
For general use in stone and soft tissue treatments
Strongly simplify the insertion in already bent scopes
Designed to deliver great power even with small fibers
For general use in stone and soft tissue treatments
Orange and blue pedals can be used to easily switch for example between "Power Fragmentation" and "Popcoming". An additional standby function allows the user to activate/deactivate the laser as needed.

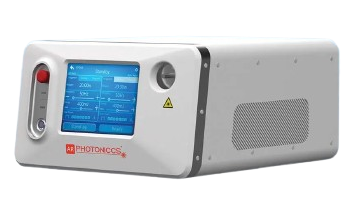

AR Photoniccs HP Series thulium laser system is the ideal solution for stone and BPH treatment in urology as well as other interventions across a range of specialties:
| Parameter | Up to 40 WATTS | Up to 65 WATTS |
|---|---|---|
| Average power | Up to 40 WATTS | Up to 65 WATTS |
| Repetition rate | 1 Hz - 1500 Hz | 1 Hz - 2500 Hz |
| Energy per pulse | 0.02 J - 5 J | 0.02 J - 6 J |
| Wavelength | 1.94 nm | 1.94 µm |
| Pulse Duration | Adjustable | |
| Laser Type | Thulium Fiber Laser | |
| Beam delivery | Wide range of flexible silica fibers | |
| Aiming beam | 532 nm (adjustable <5 mW) - Class 3R | |
| Fiber recognition | RFID System | |
| Activation | Double footswitch | |
| Cooling | Air cooling system | |
| Electrical requirements | 100-240 Vac; 50/60 Hz: 1000VA | |
| Weight | 35 kg | |
